Place of Origin: | CHINA |
---|---|
Brand Name: | UG |
Certification: | ISO |
Model Number: | wide mouth jar machine |
Minimum Order Quantity: | 1SET |
Price: | Negotiable |
Packaging Details: | WOODEN CASE |
Delivery Time: | 10-15DAYS |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50SETS |
Cavity: | 1cavity | Material: | PET |
---|---|---|---|
Blow Moulding Type: | PET Stretch Blowing Molding Machine | Plastic Processed: | PET |
Automatic: | Semi Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Voltage: | 380/50HZ, 220V/60HZ | Output: | 300-400PCS/HR |
High Light: | pet bottle moulding machine,plastic bottle manufacturing machine |
competitive price sell semi automatic PET blowing machine for wide mouth jar
The machine is designed for making wide mouth jar up to 100mm neck.

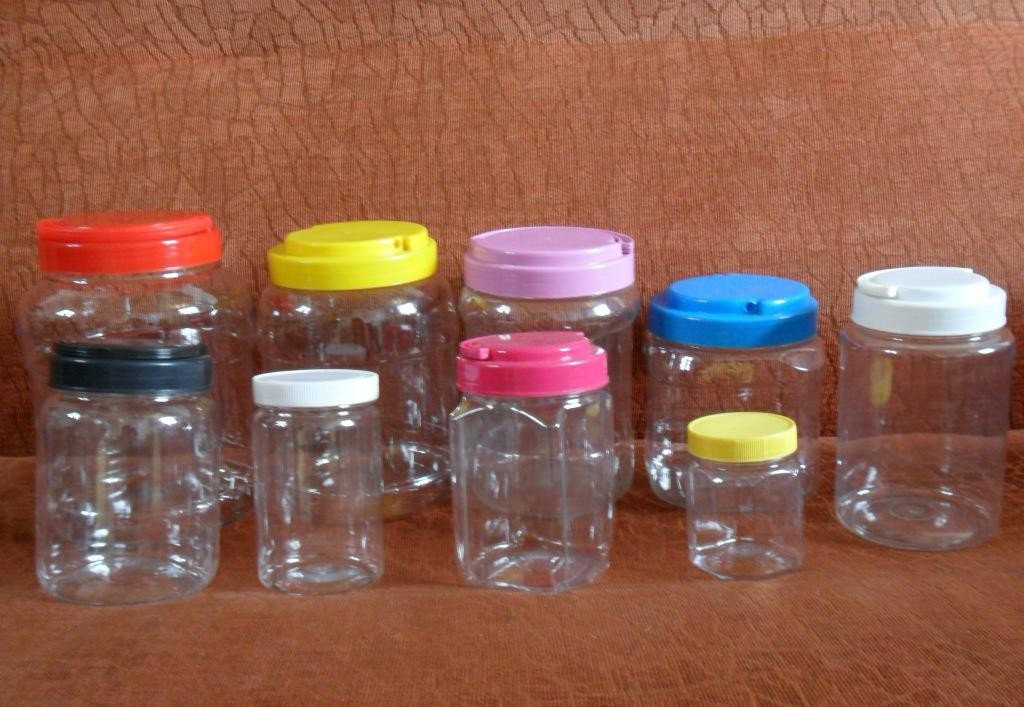

The PET jars can be used for honey bottle, candy can, biscuits storage cans.
It can be1cavity or 2cavity by changing the stretch cylinder.
Technical Data
Category | Item | Unit | UG-2C5L |
Finished product | material | / | PET |
volume | L | 5L | |
theoretical output | PCS/h | 500-1100 | |
maximum height | MM | 400 | |
the largest diameter | MM | 200 | |
Template size | the largest acreage of template | MM | 415*470 |
maximum thickness of mold | MM | 250 | |
minimum thickness of mold | MM | 170 | |
clamping force | T | 18T | |
mold opening stroke | MM | 230 | |
Auxiliary equipment |
air compressor | 15KW | ≥3.0/3.0 |
air freeze dryer | 3.0 M pa | ≥3.0/3.0 | |
air precision filter | 3.0 M pa | ≥3.0/3.0 | |
Electric power of main engine | power | KW | 10 |
voltage / frequency(three - phase) | V/HZ | 380/50-60 | |
working pressure | M pa | 0.8-1.0 | |
blowing pressure | M pa | 2.0-3.0 | |
Size | size of main engine | MM | 1980*700*1680 |
heater size | MM | 2170*585*1360 | |
Weight | weight of main engine | KG | 800 |
heater weight | KG | 300 |
