Place of Origin: | CHINA |
---|---|
Brand Name: | UGO |
Certification: | ISO CE |
Minimum Order Quantity: | 1SET |
Price: | Negotiable |
Packaging Details: | WOODEN CASE |
Delivery Time: | 40DAYS |
Payment Terms: | D/P, T/T, Western Union |
Supply Ability: | 30SETS |
Application: | This Machine Is Widely Used In Food, Beverage, Medicine, Audio-visual Products, Hardware, Cosmetics, Books, Toys, Plastic, Electronics And Other Products. | Output: | 18-20/min |
---|---|---|---|
Max. Packing Size: | 420*400*350mm (L*W*H) | Product Name}: | Packaging And Labelling Machine |
High Light: | label packaging machine,label pack machine |

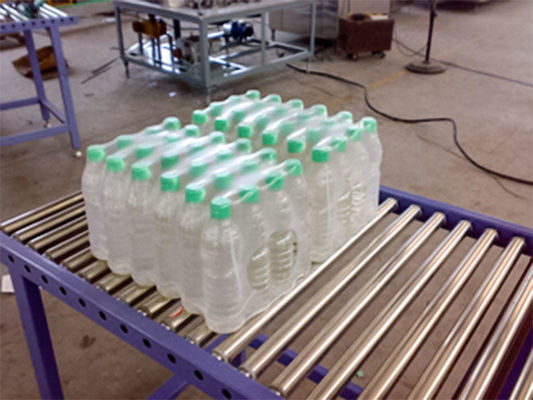

Fully automatic Linear Shrink film packing machine shrink wrapping machine high speed
Automatic shrink film packaging machine is a continuous film roll, according to the required length of the film cut to the vacuum suction of the plastic film transported to the bottom of a group of containers, containers continue to move forward while the plastic film wrapped by the lever Container and superimposes the end of the film onto the plastic film over the container,
Followed by the plastic film-coated container being fed into the heating channel and finally forming the automated packaging technology for the film wrapping product. Including container feeding, container grouping arrangement, film unwinding device, film cutting system, film conveying, shrink film winding and shrinking furnace. Can be packaged in different containers, such as: plastic bottles, glass bottles, cans, jars or a number of small packages.
Technical Data
Capacity | 18-20pcs per minutes |
Max. product size | 270*650*350mm |
Max. packing size | 600*650*450mm (L*W*H) |
Suitable plastic film thickness | 0.03-0.15mm |
Heating temperature | 260 degree adjustable |
Working pressure | 0.6-0.8Mpa |
Input Power | 3PH 380V 50HZ |
Motor power | 30kw |
Machine size | (L)12000×(W)1100×(H)2100 |
Machine weight | 2400kg |
