Place of Origin: | CHINA |
---|---|
Brand Name: | HITEK |
Certification: | ISO |
Model Number: | chair mould |
Minimum Order Quantity: | 1SET |
Price: | Negotiable |
Packaging Details: | WOODEN CASE |
Delivery Time: | 50DAYS |
Payment Terms: | L/C, T/T, D/P, Western Union |
Supply Ability: | 10SET/MONTH |
Runner: | Cold Or Hot Runner | Ejector: | Semi/automatic |
---|---|---|---|
Cylce Time: | 45-60s | Product Material: | Plastic,Steel,PP,ABS,PS |
Shaping Mode: | Plastic Injection Mould | Material: | STEEL |
Design: | Unique | Surface Treatment: | Polishing And Grinding |
Shipment: | By Sea Or Air , Or Express | Design Ability: | Free Design Service |
Surface Finish: | Polishing | Standard Component: | DME, HASCO, JIS Etc., |
Cavities: | Single Or As Your Requirement | Warranty: | 1year |
Mold Material: | 738H 718H NAK80 S136 2344 | Mould Standard: | DME, LKM, HASCO |
Mould Steel: | P20, 718, 2738, H13, Etc. | Cycle Time: | 10-35s |
Product Material: | Steel | Delivery: | By Sea |

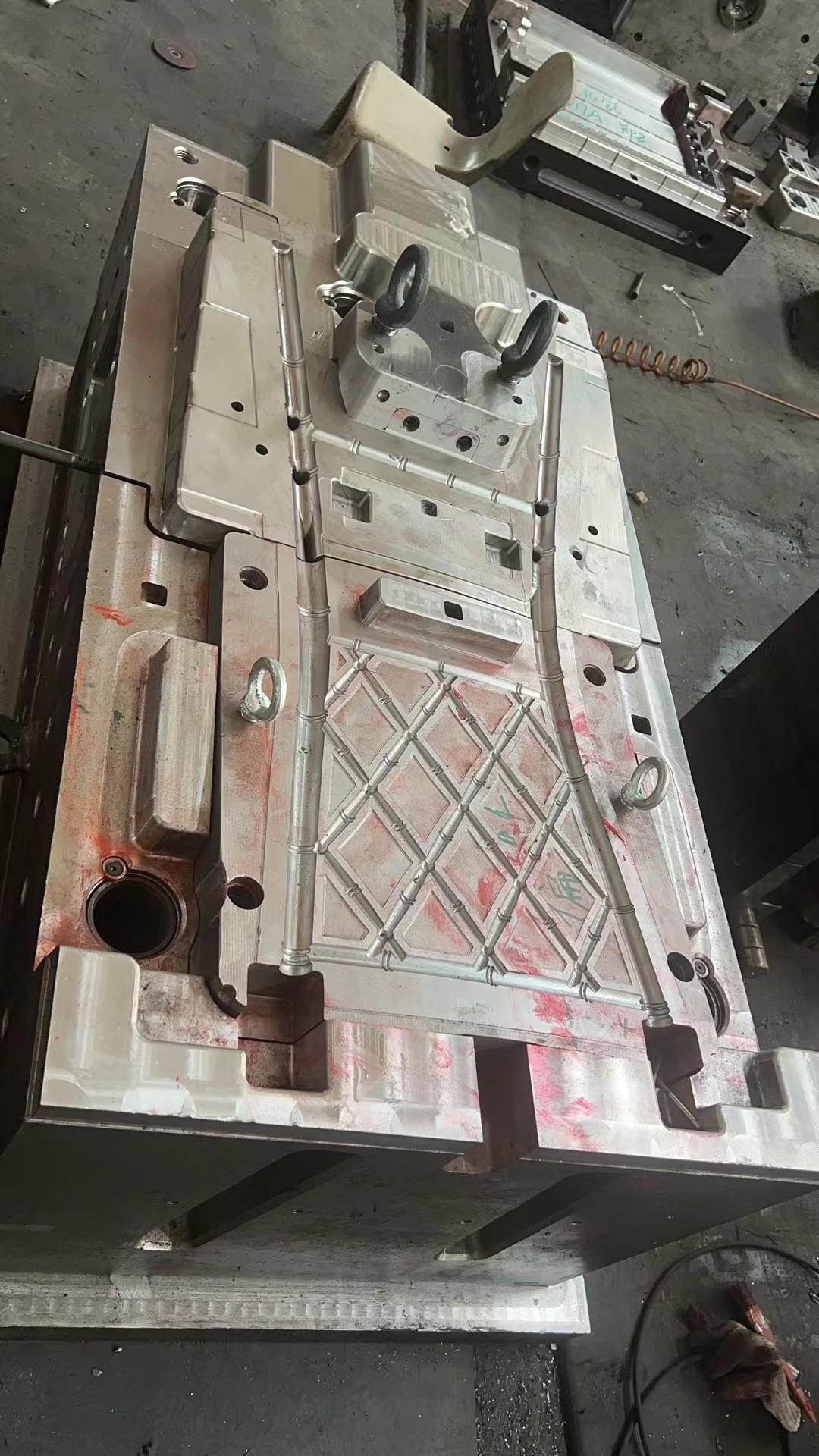

Customizable Plastic Chair Mould for Different Chair Sizes and Designs CHIAVARI CHAIR mould
Hitek mould is a professional mold manufacturer in designing and making plastic chair moulds. We produce around 80 sets chair molds annually including plastic rattan moulds, arm chair mould, armless chair molds, children chair molds, aluminum leg chair shell molds, PC transparent chair molds etc.
We concern on the cycle of the chair molds, the parting line, wall thickness and exhaust. Superimposed on the mold of the gas-assisted process and on the machine to change the seat back insert, as well as chair of our production constantly sum up, now has a mature technology and experience.
PRODUCT PARAMETERS
Mould Name | CHIAVARI CHAIR mould |
Product Size | 1200*900*700mm |
Mould Cavity | 1 cavity |
Mould Size | As design |
Suitable Machine | 850T-1000T |
Mould Main Material | P20 |
Mould Injection System | hot runner direct cone gate |
Mould Ejection System | Ejector pin |
Mould Cycle Time | 45 Seconds |
Mould Running | 500K-800K |
Delivery Time | 60 working days |
Mould Features | Simple structure mould. Optimal cooling system, Good polishing, Precision air venting, Interchangeable back design inserts |
