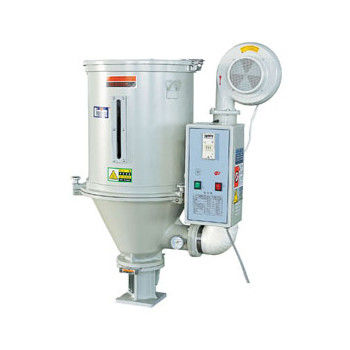

High Efficiency Plastic Auxiliary Equipment Plastic Hopper Dryer For Injection Molding Machine

Brand Name:	HITEK
Model Number:	XHD
MOQ:	1SET
Price:	Negotiable
Delivery Time:	15DAYS
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Product Name:

Plastic Hopper Dryer

Application:

For Injection Molding Machine

Model:

XHD

Certification:

ISO, CE

Packaging Details:

WOODEN CASE

Supply Ability:

20SETS

Highlight:

industrial air compressor

plastic crusher machine

Product Description

High quality plastic hopper dryer for injection molding machine

Features:

hot air distribution: high thermal efficiency, significantly shorten the drying time. Temperature control accuracy: the use of high-precision temperature regulator to eliminate the temperature error. Save time, save manpower: tube and the base of separate design, clear material convenient, easy and fast material refueling. Very reliable design: beautiful and firm, shorten the raw material melting time, improve the injection rate. Increase the injection rate: direct blanking, shorten the raw material melting time, improve the injection rate. Automatic control of working hours: 24 hours to set the opening and closing time, automatic work. A, L-type tripod, hot air reclaimer, fan inlet filter, exhaust air worry device, magnetic base, hopper magnet, the European suction suction box, etc. for matching.

The main parameters

Model	Barrel diameter(mm)	Dimensions(mm)	Storage capacity(kg)	Electro-thermal(kw)	Applicable models(oz.)
XHD-12kg	280	640×430×780	12	2.1	1
XHD-25kg	350	760×500×900	25	3.5	3
XHD-50kg	430	840×540×1030	50	4.8	5-8
XHD-75kg	468	950×600×1140	75	5.1	6-9
XHD-100kg	550	1080×700×1250	100	7.8	10-30
XHD-150kg	630	1120×760×1300	150	8.88	15-30
XHD-200kg	700	1250×850×1480	200	10	30-60
XHD-300kg	750	1300×920×1740	300	15	>60
XHD-400kg	800	1400×1040×1760	400	20	>60
XHD-600kg	990	1600×1150×2150	600	27	>60
XHD-800kg	1090	1700×1330×2660	800	32	>60
XHD-1000kg	1090	1700×1330×2860	1000	32	>60
