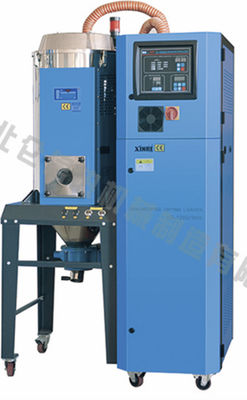

3 In 1 Plastic Auxiliary Equipment Feeding Dehumidifying Dryer Machine

Basic Information

Place of Origin:	CHINA
Brand Name:	XR
Certification:	ISO, CE
Model Number:	XD

Minimum Order Quantity:	1SET
Price:	Negotiable
Packaging Details:	WOODEN CASE
Delivery Time:	15DAYS
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	20SETS

Get Best Price Contact Now

Feature:

3 In 1

Model:

Certification:

ISO, CE

Product Name:

Feeding-dehumidifying -dryer Machine

High Light:

industrial air compressor

plastic crusher machine

High quality 3 in 1 feeding-dehumidifying -dryer machine for PET preform production dehumidification dry feed

XMD mold dehumidifier is mainly used in plastic molding, because the mold using chilled water to shorten the molding cycle and condensation problems, in particular, PET bottle embryos the most suitable. Condensation phenomenon is when the mold shows that the temperature is lower than the surrounding ambient air dew point temperature will produce water vapor, which affects the product quality and efficiency, while corrosion of the mold surface, and cause environmental pollution. The machine uses the honeycomb wheel system dehumidification operation to ensure that the mold around the 0-10 ℃ always maintain the low dew point of the air environment, so that the phenomenon of condensation caused by the mold is also not affected by seasonal changes, significantly reducing the defect and the rejection rate.

Features:

▪ With P.I.D temperature control system, with regenerative temperature setting and actual temperature display screen;

▪ 24 hours automatic operation timing setting, and automatic fault display function;

▪ Honeycomb design, dehumidification dryness and stability;

▪ Motor overload and reverse phase alarm function;

▪ Total power switch with mechanical interlock function;

▪ return air cooling and filtration function;

▪ Optional digital dew point detector with high dew point indication and alarm;

▪ Under normal atmospheric conditions, the humidity can be precisely controlled throughout the year;

▪ extend the life of the mold, reduce corrosion, improve product yield;

▪ The dry air temperature of the outlet to the mold is about 30 ° C, which does not cause the temperature around the mold to be too low to expose the firing window.

▪ Immediately with detachable return air collectors for closed-loop applications, especially in tropical climates.

The main technical parameters

Model number		XD-80u/ 90H	XD-120u/ 90H	XD-160u/ 120H	XD-230u/ 150H	XD-300u/ 200H	XD-450u/ 300H	XD-600u/ 400H	XD-750u/ 500H	XD-900u/ 700H	XD-900u/ 700H
Drying system
Insulation capacity (L)		80	120	160	230	300	450	600	750	900	1200
Dry electric power (kw)		3	6	6	7.2	12	15	18	21	24	24
Dry fan power (kw)		0.55	1.1	2.2	2.2	3	3	4	5.5	5.5	5.5
Dehumidification system
Dehumidification air volume (m/hr)		90	90	120	150	200	300	400	500	700	700
Regenerative heating power (kw)		2.8	3.5	3.5	4	5.4	7.2	7.2	10	10	10
Regenerative fan power (kw)		0.37	0.37	0.55	0.55	0.75	0.75	1.1	1.1	2.2	2.2
Feeding system
Feeding fan power (kw)		1.75	1.75	1.75	1.75	2.2	2.2	2.2	2.2	2.2	2.2
Suction piping (inch)		1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	2	2
Electric eye hopper (L)		6	6	6	12	12	12	12	12	12	12
Ordinary hopper(L)		6	6	6	6	6	6	6	6	12	12
Dimensions (mm)	Long	1200	1200	1300	1500	1600	1700	1700	2100	2100	2100
	Width	1000	1000	1100	1360	1360	1400	1400	1500	1500	1500
	High	1870	1870	1900	2060	2060	2300	2300	2700	2700	3200
Weight(kg)		330	376	395	435	570	600	700	750	850	950
